G-20464
4" square trimless drop lens
4" Square Trimless Drop Lens
Dimmable
1200/1700 Lumens
15/20 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20464
Description
DL4/20W/SQ/2WS/5CCT/TL
Shape
Square
Style
Trimless
Size
4 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

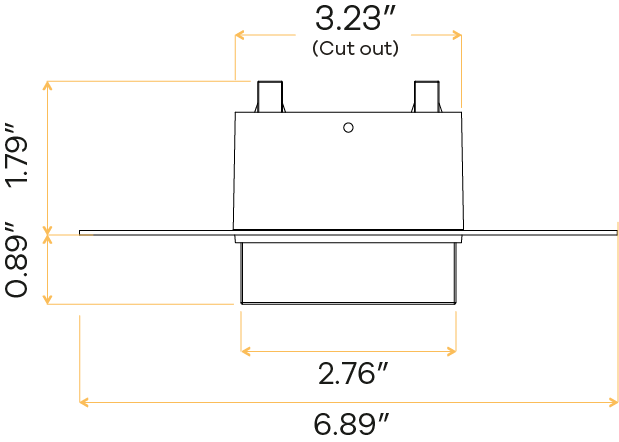

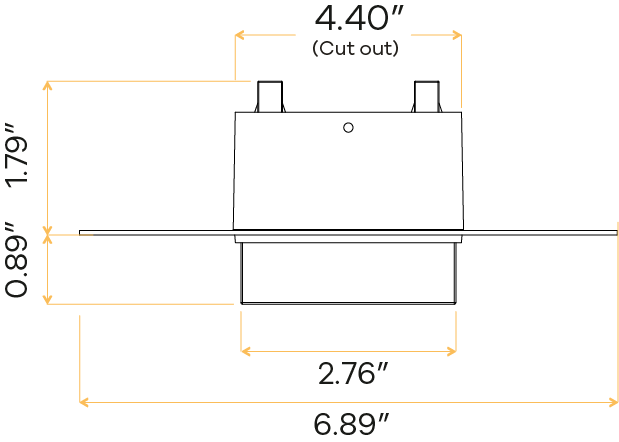

Cutout
Sq 3.23” - Rd 4.40”

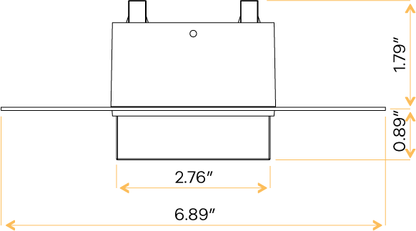

OD (Outside dimensions)
6.89"
Height
1.79"
Lens Width
2.76"
Lens Drop
0.98"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
990379204645
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
1200/1700
CRI
>90
Beam Spread Deg
130°
Electrical Specs
Watt
15/20W
Volts
120-277V
Output Current
353/515mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
Classification
ETL, Title24 Listed
IES
