G-20452
2" round trimless drop lens
2" Round Trimless Drop Lens
Dimmable
550/850 Lumens
8/12 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20452
Description
DL2/12W/RD/2WS/5CCT/TL
Shape
Round
Style
Trimless
Size
2 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

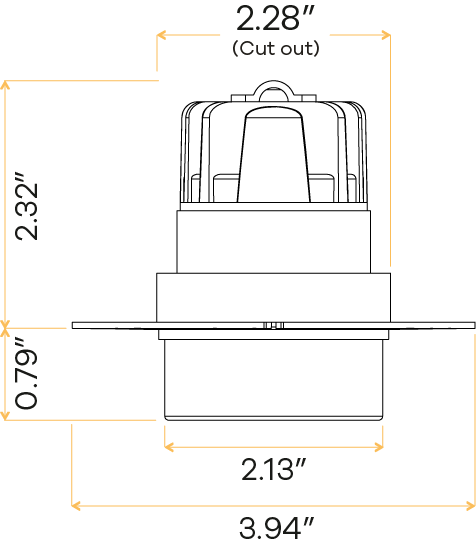

Cutout
2.28”

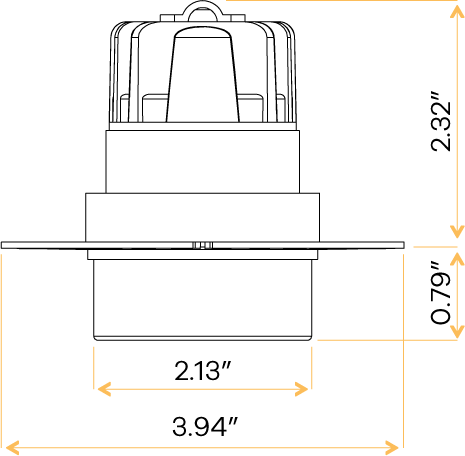

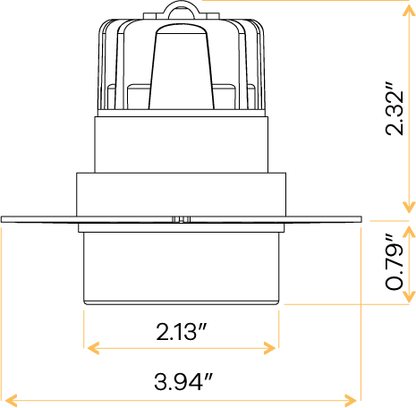

OD (Outside dimensions)
3.94"
Height
2.32"
Lens Width
2.13"
Lens Drop
0.79"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
990379204522
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
550/850
CRI
>90
Beam Spread Deg
130°
Electrical Specs
Watt
8/12W
Volts
120-277V
Output Current
180/310mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
Classification
ETL, Title24 Listed
IES
