G-95726
Saturn

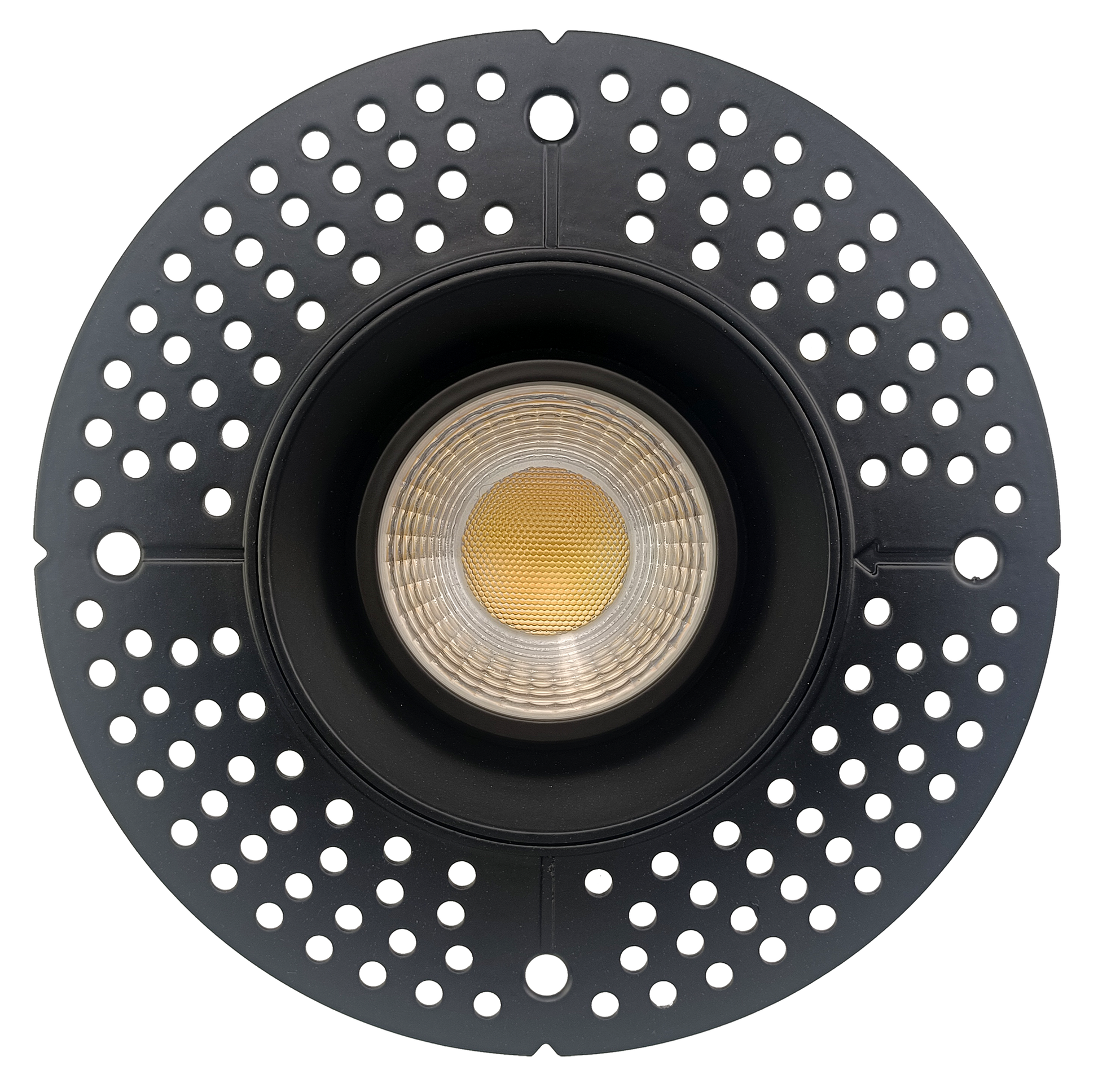

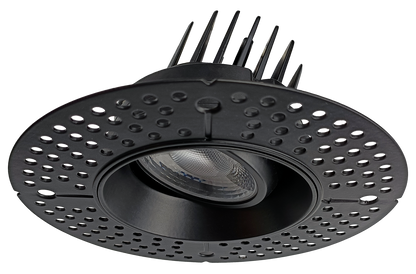

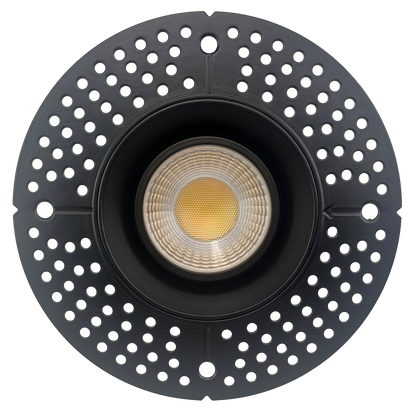

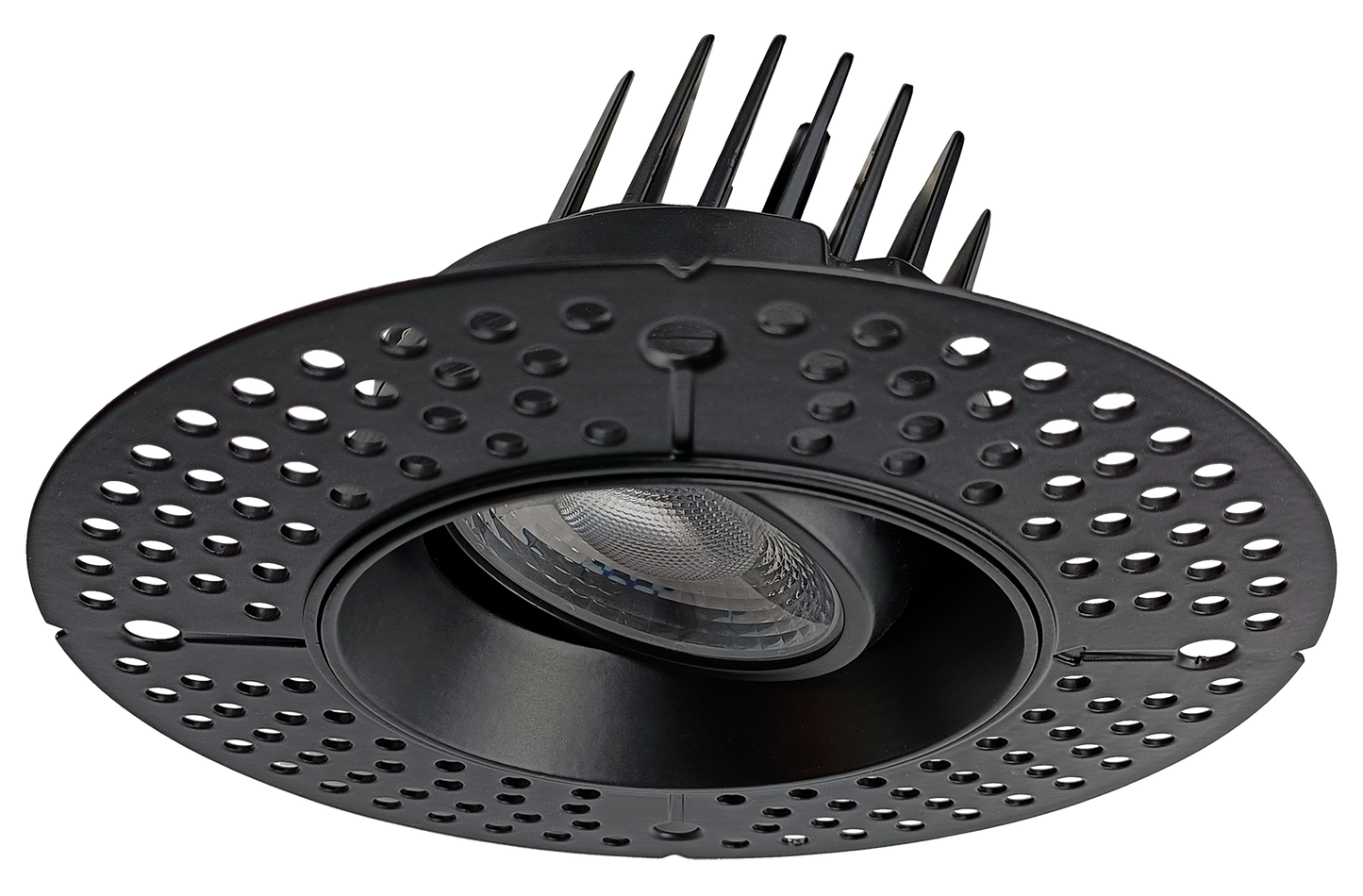

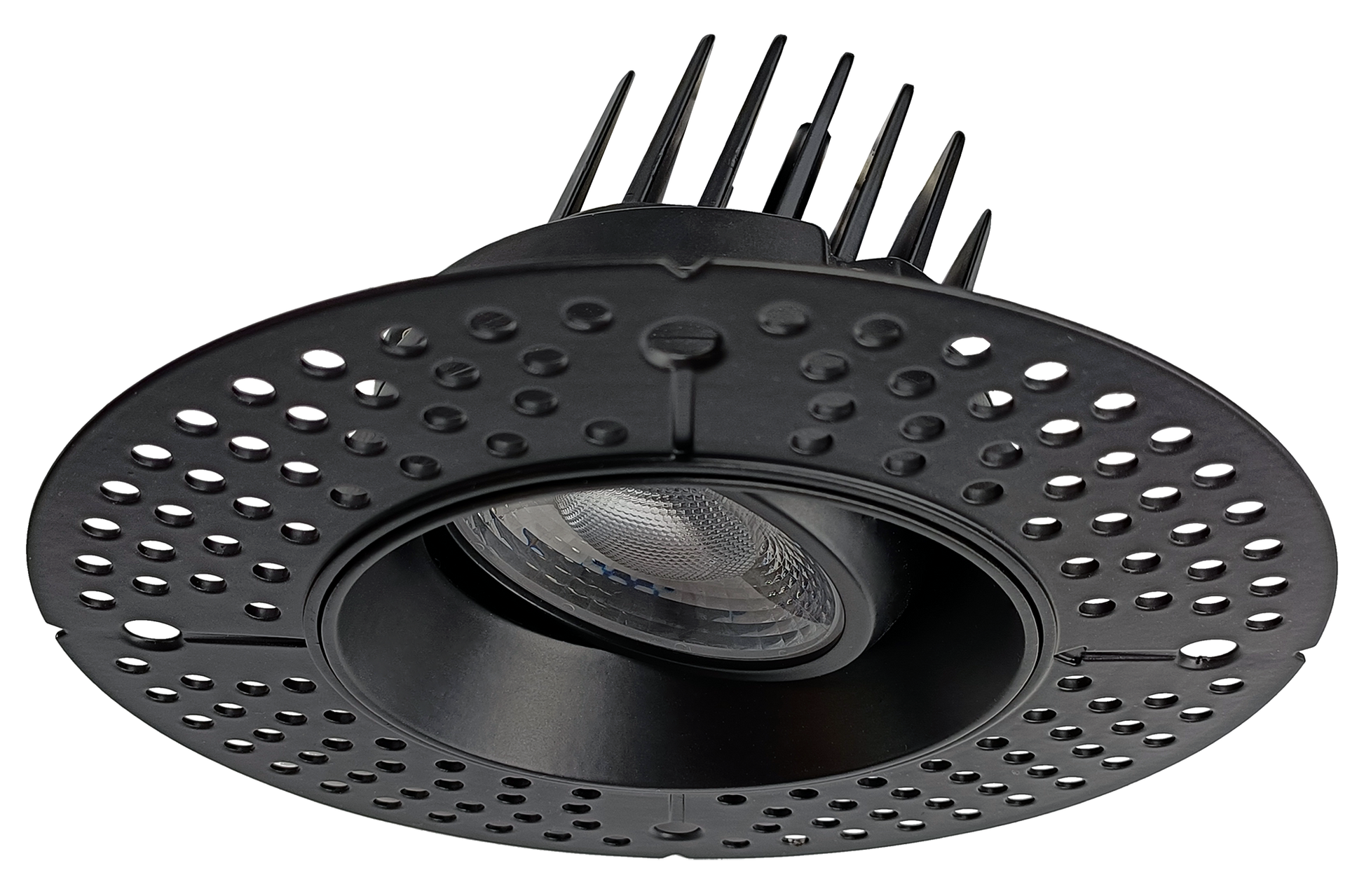

3.5" gimbal trimless (black)

3.5" Gimbal Trimless (Black)

27,30,35,41,50k
Dimmable
1400 Lumens
14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-95726
Description
R3.5/14W/GR/LED/TL/5CCT BK
shape
Round
style
Trimless
size
3.5 Inch
finish
Black
diffuser
Clear
number of lights
1
cutout
3.65”
OD (Outside dimensions)
6.10"
height
3.45"
mounting
Mud-in
Packaging Information
master pack
18
Barcode
024431957269
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400
CRI
>90
beam spread deg
60°
tilt angle
20°
rotating
360°
Electrical Specs
watt
14W
volts
120-277V
output current
340mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (5 Punchouts) G-98810 (5 Punchouts) G-19982 (3 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
