G-96921
Fire rated

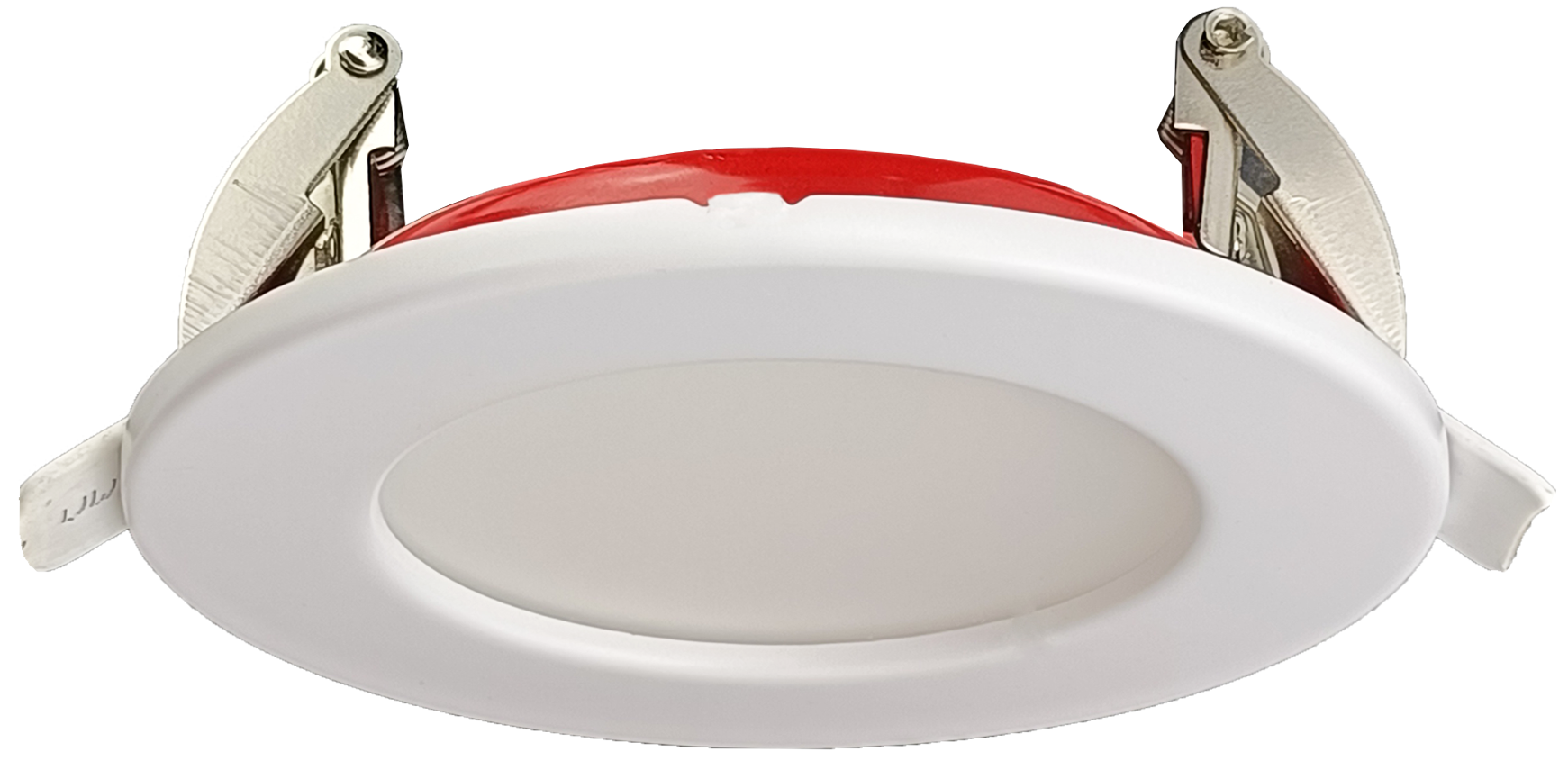

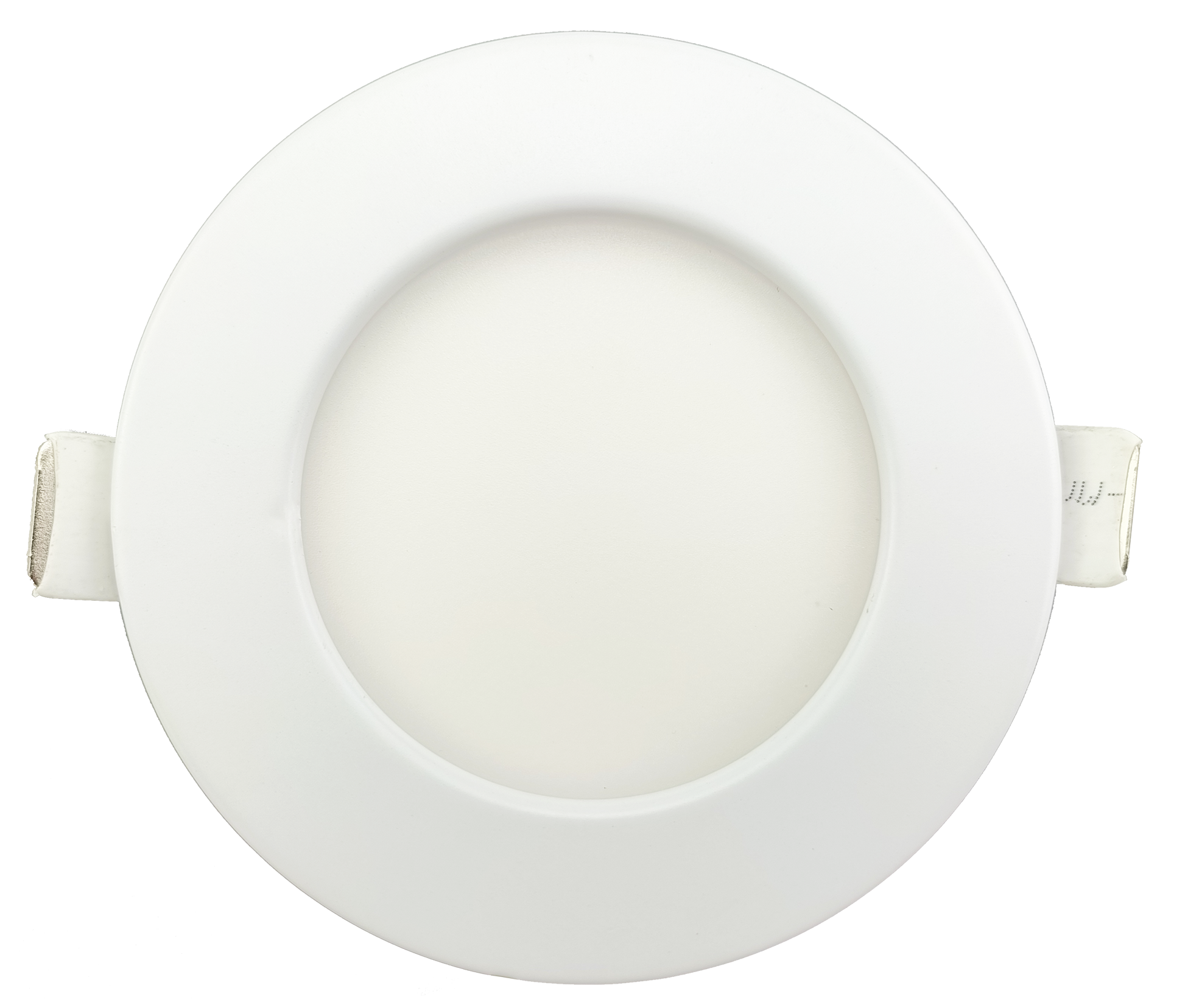

3" fire rated round flushed slim

3" Fire Rated Round Flushed slim

27,30,35,41,50k
Dimmable
600 Lumens
8 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-96921
Description
S3/8W/R/LED/5CCT FR
shape
Round
style
Trimmed
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1

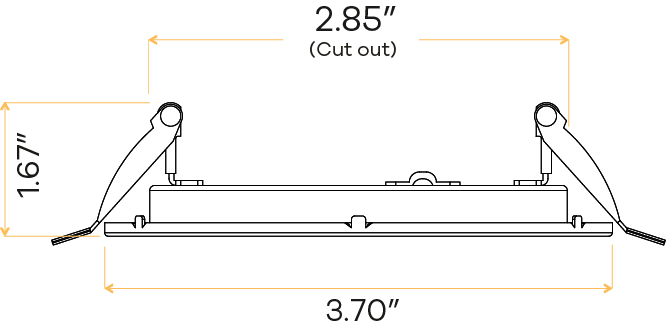

cutout
2.85”

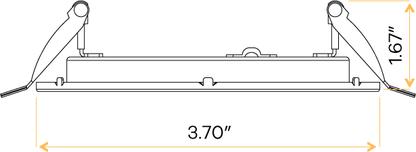

OD (Outside dimensions)
3.70"
height
1.67
clips compatible
Double 5/8 Sheetrock
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431969217
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
600
CRI
>90
beam spread deg
100°
Electrical Specs
watt
8W
volts
120-277V
output current
190mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
certified
UL 263 & ASTM E119
fire rated
2 Hours
classification
ETL Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (4 Punchouts) G-98810 (4 Punchouts) G-19982 (2 Punchouts)
Colored Covers
G-48370 Black G-48371 Nickel G-48372 Bronze G-48382 Brass G-23730 Red G-23731 Orange G-23732 Yallow G-23733 Green G-23734 Blue G-23735 Rose Blush
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt
