G-96922
Fire rated

4" fire rated round flushed slim

4" Fire Rated Round Flushed slim

27,30,35,41,50k
Dimmable
925 Lumens
12 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-96922
Description
S4/12W/R/LED/5CCT FR
shape
Round
style
Trimmed
size
4 Inch
finish
White
diffuser
Frosted
number of lights
1

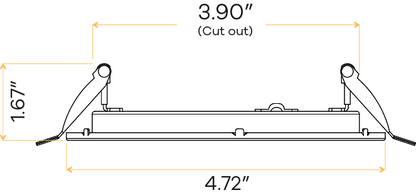

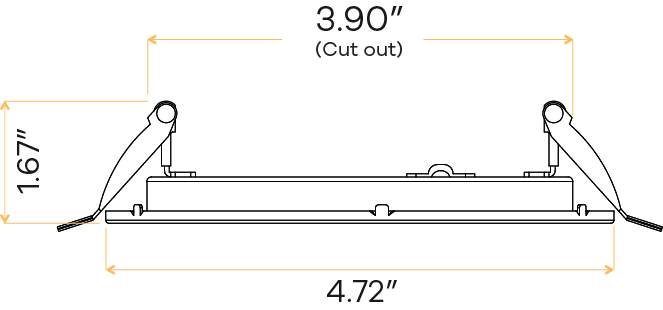

cutout
3.90"

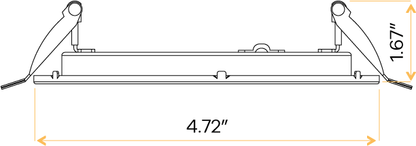

OD (Outside dimensions)
4.72"
height
1.67”
clips compatible
Double 5/8 Sheetrock
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431969224
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
925
CRI
>90
beam spread deg
100°
Electrical Specs
watt
12W
volts
120-277V
output current
270mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
certified
UL 263 & ASTM E119
fire rated
2 Hours
classification
ETL Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (6 Punchouts) G-98810 (6 Punchouts) G-19969 (1 Punchouts) G-19982 (4 Punchouts)
Colored Covers
G-48373 Black G-48374 Nickel G-48375 Bronze G-48383 Brass G-23740 Red G-23741 Orange G-23742 Yellow G-23743 Green G-23744 Blue G-23745 Rose Blush
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824
