1 4
Back
G-97022
Fire rated

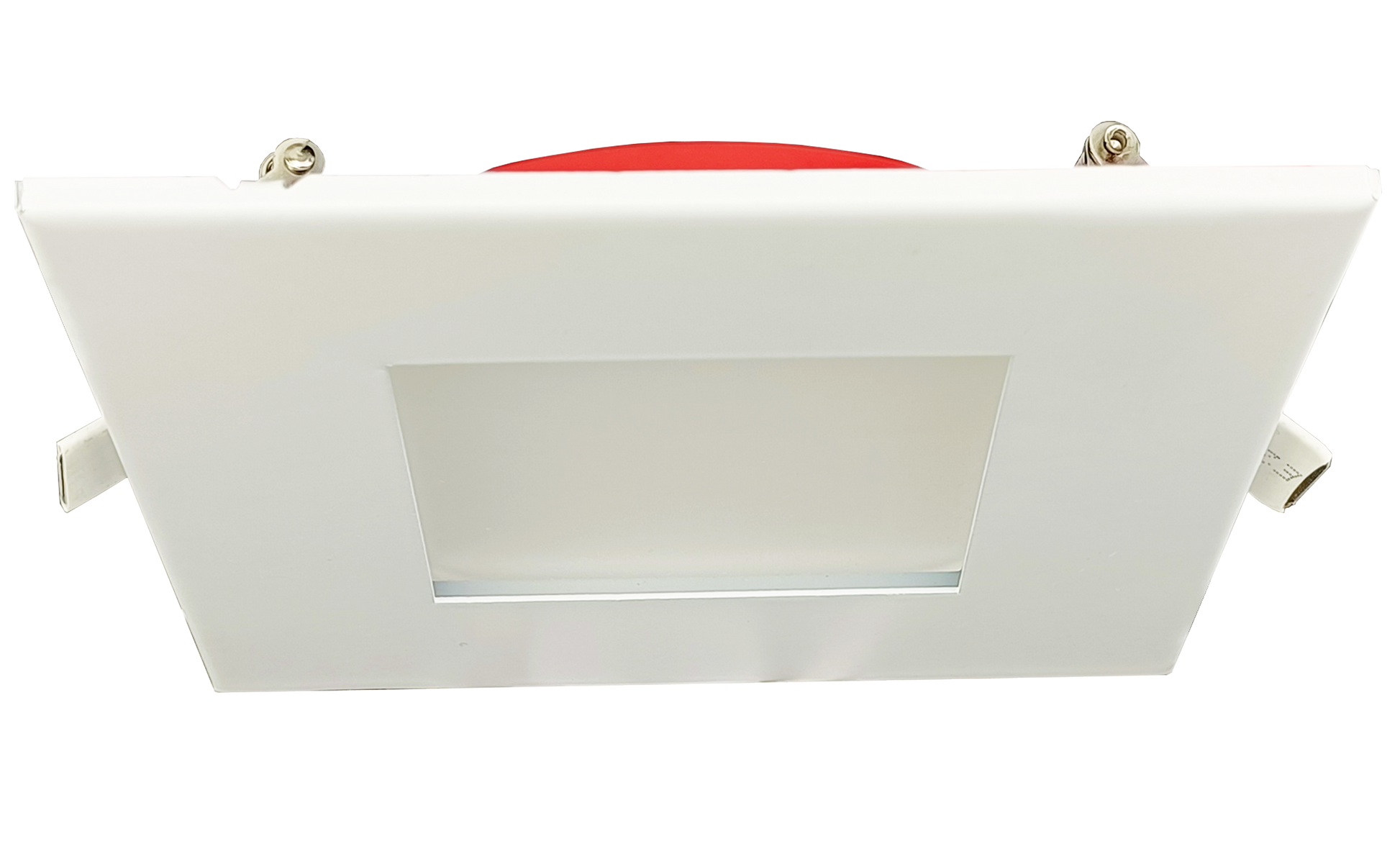

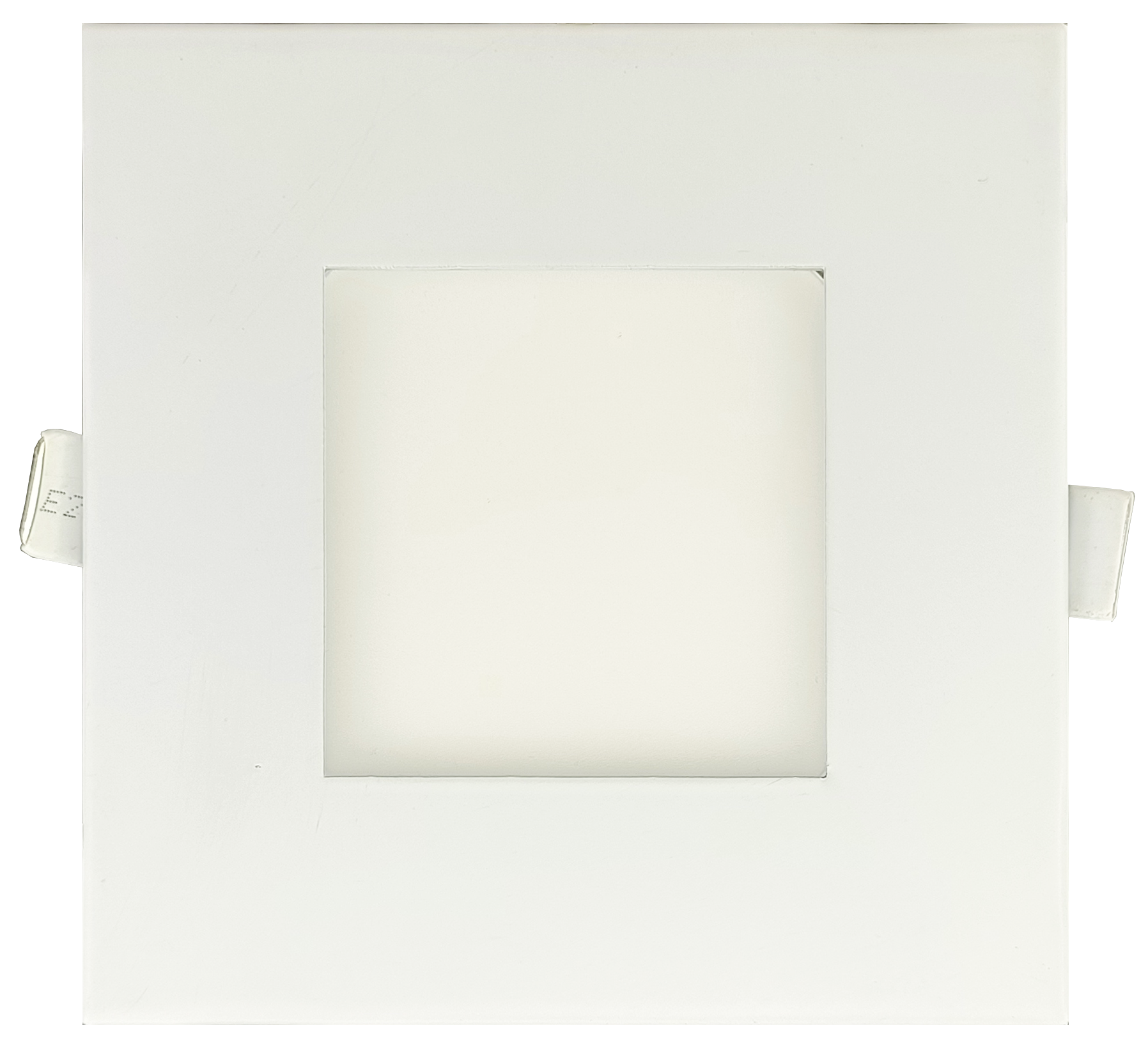

4" fire rated square flushed slim

4" Fire Rated Square Flushed slim

27,30,35,41,50k
Dimmable
850 Lumens
12 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-97022
Description
S4/12W/SQ/LED/5CCT FR
shape
Square
style
Trimmed
size
4 Inch
finish
White
diffuser
Frosted
number of lights
1
cutout
3.95”

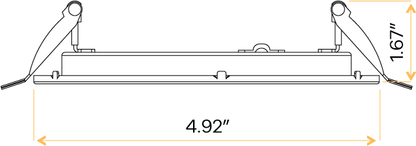

OD (Outside dimensions)
4.92"
height
1.67”
clips compatible
Double 5/8 Sheetrock
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431970220
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
850
CRI
>90
beam spread deg
100°
Electrical Specs
watt
12W
volts
120-277V
output current
270mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
certified
UL 263 & ASTM E119
fire rated
2 Hours
classification
ETL Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (6 Punchouts) G-98810 (6 Punchouts) G-19969 (1 Punchouts) G-19982 (4 Punchouts)
Colored Covers
G-48388 Black G-48389 Nickel G-48390 Bronze G-48398 Brass
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 12 Watt
