G-97023
Fire rated

5" fire rated square flushed slim

5" Fire Rated Square Flushed slim

27,30,35,41,50k
Dimmable
1200 Lumens
15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-97023
Description
S5/15W/SQ/LED/5CCT FR
shape
Square
style
Trimmed
size
5 Inch
finish
White
diffuser
Frosted
number of lights
1
cutout
5.10”

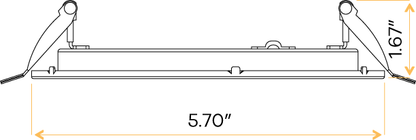

OD (Outside dimensions)
5.70"
height
1.67”
clips compatible
Double 5/8 Sheetrock
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431970237
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1200
CRI
>90
beam spread deg
100°
Electrical Specs
watt
15W
volts
120-277V
output current
350mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
certified
UL 263 & ASTM E119
fire rated
2 Hours
classification
ETL Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (8 Punchouts) G-98810 (8 Punchouts) G-19982 (5 Punchouts)
Colored Covers
G-48391 Black G-48392 Nickel G-48393 Bronze G-48399 Brass
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 18 Watt
