G-48242
Aster

2 inch 8/14w ho interchangeable module (trimless use)

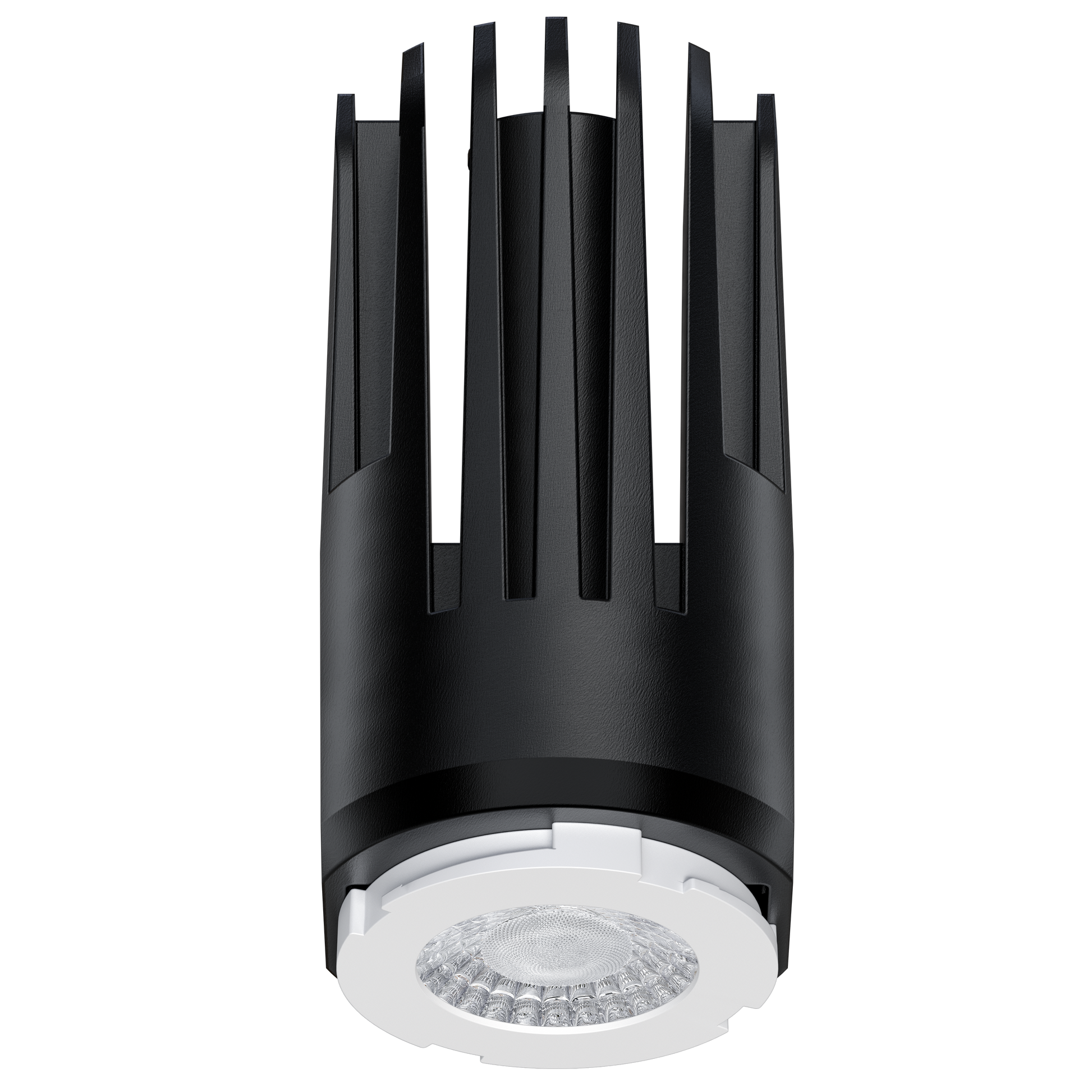

2 Inch 8/14W HO Interchangeable Module (Trimless use)

Module:
27,30,35,41,50k
Dimmable
750/1200 Lumens
8/14 Watts
120-277 V
Dim to Warm
Get a quote Data Sheets & Resources

Note:

See Alternative Module With Spring Clips For Trimmed Use
View full details

Information

General Specs
Product Code
G-48242
Description

M2/14W/TLU/LED/5CCT

size
2 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
990379482425
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K + DTW
Dim to Warm Colors
Multi Select
lumens
750/1200
CRI
>90
beam spread deg
60° (Default)
Electrical Specs
watt
8/14W
volts
120-277V
output current
190mA/310mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Clear Lens Options
G-10946 24° Lens G-10947 40° Lens G-10948 60° Lens
Frosted Lens
G-10944
Lens Covers
G-10918 Solite Cover G-10919 Prismatic Cover G-10920 Beamsplit Cover
Hex honeycomb
G-21752
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt G-95825 14 Watt
