G-48171
Aster

1 inch interchangeable module (trimless use)

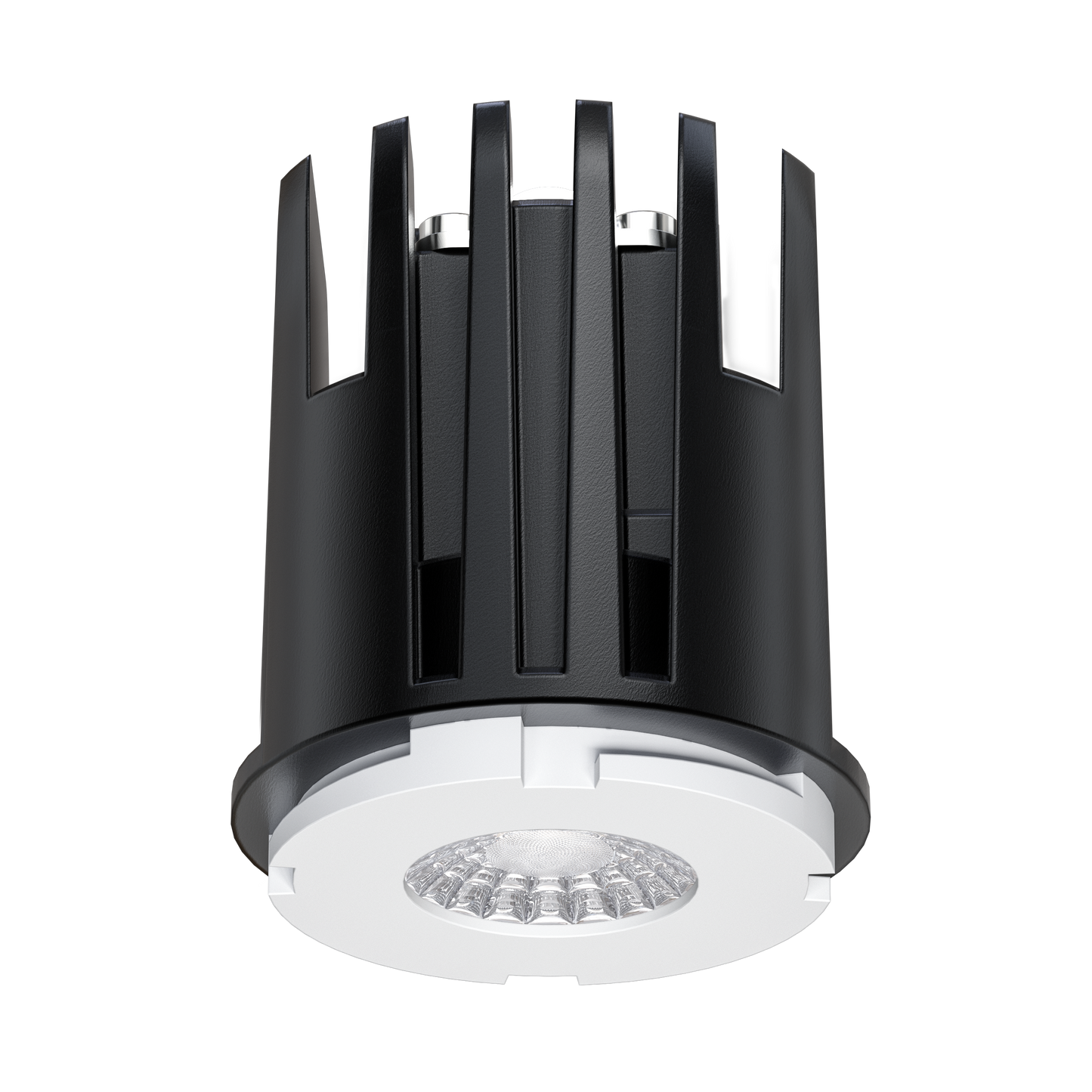

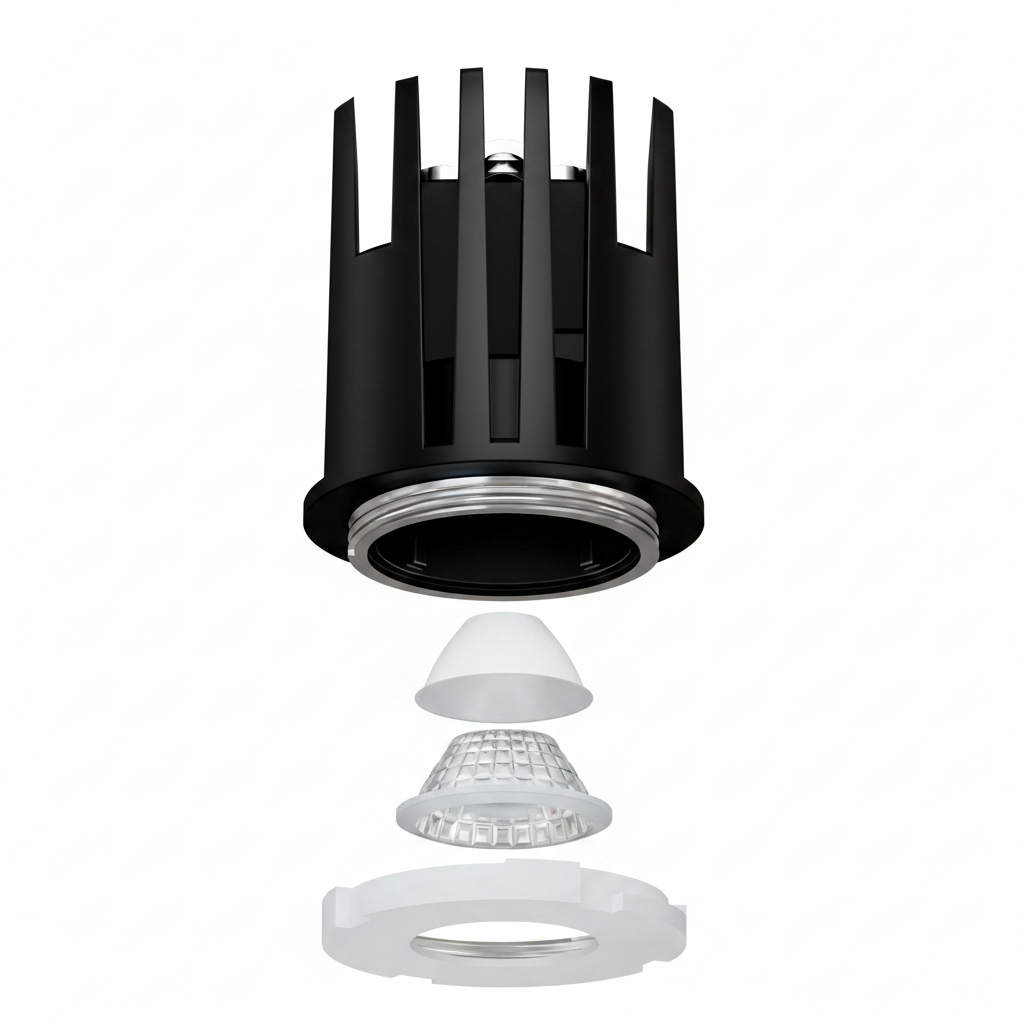

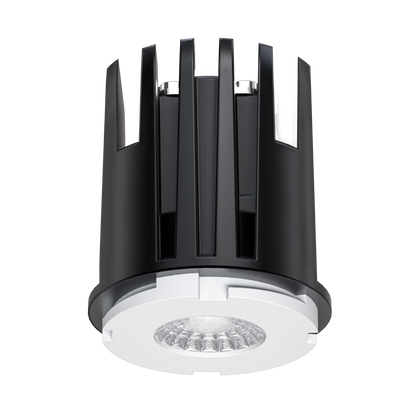

1 Inch Interchangeable Module (Trimless use)

Module:
27,30,35,41,50k
Dimmable
600 Lumens
7 Watts
120-277 V
Get a quote Data Sheets & Resources

Note:

See Alternative Module With Spring Clips For Trimmed Use
View full details

Information

General Specs
Product Code
G-48171
Description

M1/7W/TLU/LED/5CCT

size
1 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
990379481718
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
600
lumen effeciency
85
CRI
90>
beam spread deg
40° (Default)
Electrical Specs
watt
7W
volts
120-277V
output current
150mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Clear Lens Options
G-10951 24° Lens G-10952 40° Lens G-10953 60° Lens
Frosted Lens
G-10950
Lens Covers
G-10942 Solite Cover G-10943 Prismatic Cover G-10938 Beamsplit Cover
Hex honeycomb
G-21751
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 7 Watt
