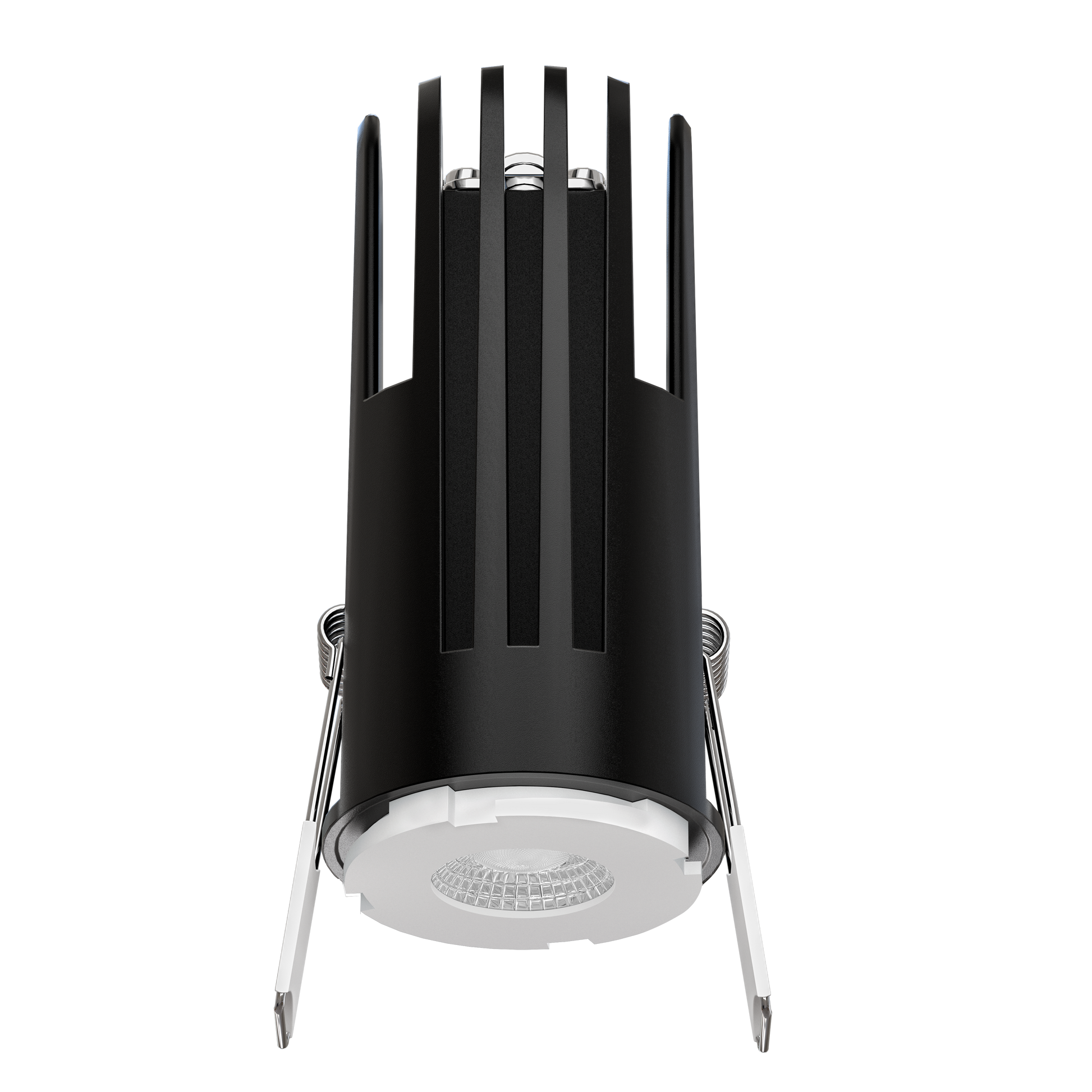

G-48468
1 inch interchangeable ho module
1 Inch Interchangeable HO Module
Module:
Dimmable
1100 Lumens
15 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-48468
Description
M1/15W/LED/5CCT
size
1 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
696304484686
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1100
lumen effeciency
73
CRI
90>
beam spread deg
60° (Default)
Electrical Specs
watt
15W
volts
120-277V
output current
350mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
No
classification
ETL, Title24 Listed
